Bending Light
If you have ever half-submerged a straight stick into water, you have probably noticed that the stick
appears bent at the point it enters the water (see Figure 1.) This optical effect is due to refraction. As light
passes from one transparent medium to another, it changes speed, and bends. How much this happens
depends on the refractive index of the mediums and the angle between the light ray and the line
perpendicular (normal) to the surface separating the two mediums (medium/medium interface) (See Figures 2a and 2b.) Each medium has a different refractive

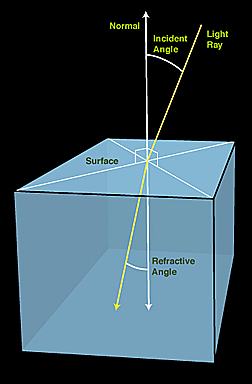

index (see list below.) The angle between the light ray and the
normal as it leaves a medium is called the angle of incidence. The angle between the light ray and the normal
as it enters a medium is called the angle of refraction.
Snell's Law
In 1621, a Dutch physicist named Willebrord Snell (1591-1626), derived the relationship between the
different angles of light as it passes from one transperent medium to another.
When light passes from one transparent medium to another, it bends
according to Snell's law which states:
Ni * Sin(Ai) = Nr * Sin(Ar),
where: Ni is the refractive index of the medium the light is leaving, Ai is the incident angle between the light ray and the normal to the meduim to medium interface, Nr is the refractive index of the medium the light is entering, Ar is the refractive angle between the light ray and the normal to the meduim to medium interface.
Figure 3. Refraction simulator
You can experiment with effects of different incident angles and refractive indices with Figure 3. You can move the flashlight
around, and change the refractive index of the top and bottom mediums. You can use the
buttons to quickly enter the index for a few common mediums.
Critical Angle
Using the refraction simulator, notice how the light bends toward the normal when the light enters a medium of greater refractive index, and away from the normal when
entering a medium of lesser refractive index. Then notice what happens when you move the flashlight to an angle close to 90 or -90 degrees
in the medium with a higher refractive index. As you approach the critical angle the refracted light approaches 90 or -90 degrees
and, at the critical angle, the angle of refractions becomes 90 or -90 and the light is no longer transmitted across the medium/medium interface. For
angles greater in absolute value than the critical angle, all the light is reflected. This is called total internal reflection.
